Chip heaters

Chip heaters

General description:

With more than 40 W of rated power, the heating element of the type HR is a powerful miniature heater. The square design of the width and height of the heating element also makes it possible to use the side surfaces for heat transfer. This makes the HR type suitable for partially recessed installation, for example for space-saving and targeted heating of tools for handling and simultaneous heating of electronic components, or for die-bonding.

Basic values:

Parameter Value

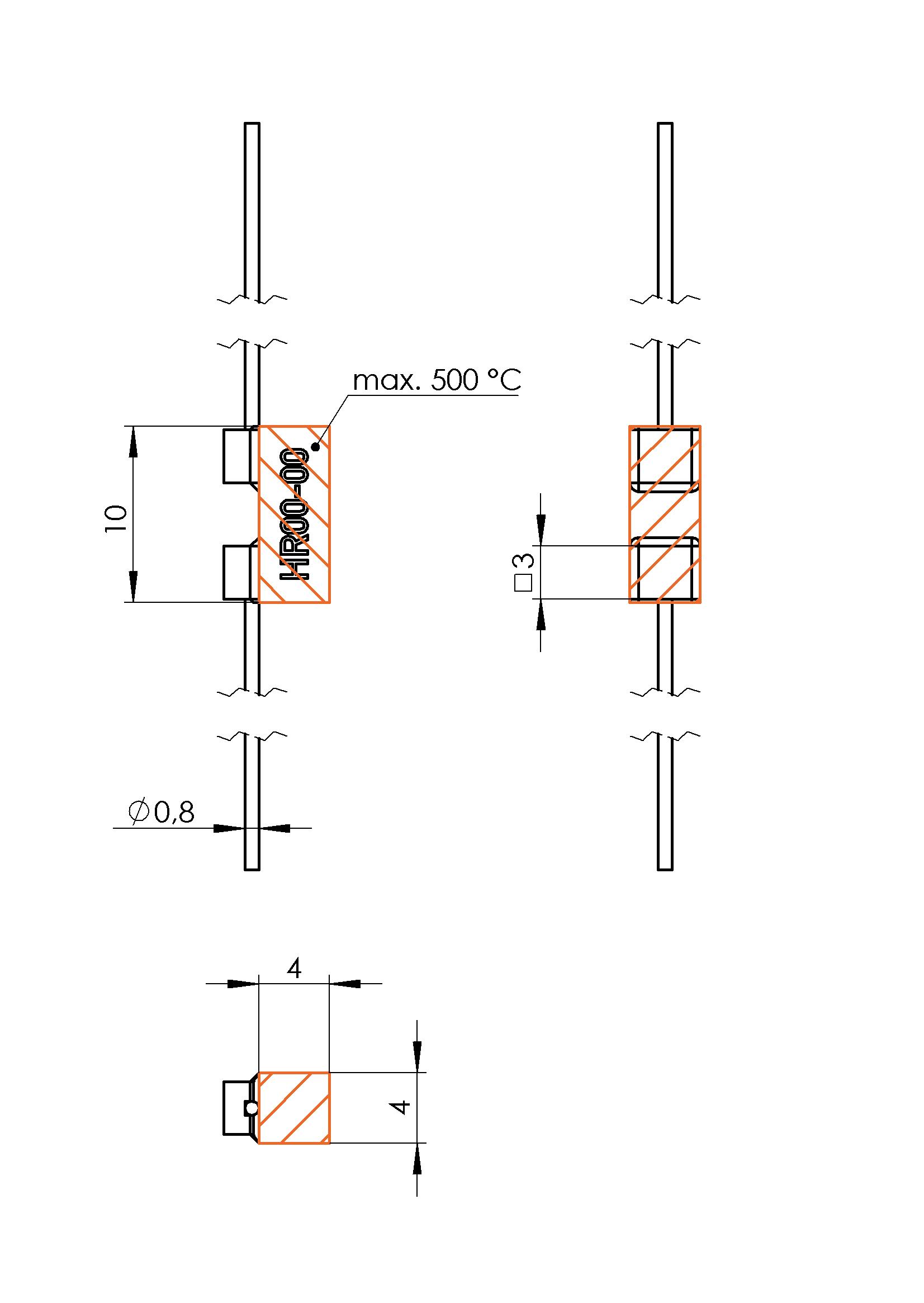

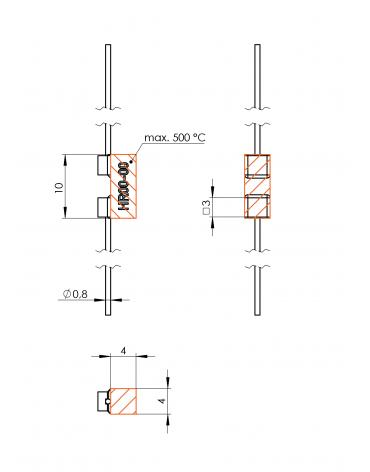

Dimensions 10 x 4.0 x 4.0 mm
Heated area 10 x 4.0 x 4.0 mm
Tmax 500 °C




* The actual power depends on resistance, temperature and voltage.

Parameter Value
Article no. FLE 100 219
Resistance @ 20 °C 14 Ω ±25 %
Nominal voltage 24 V
Nominal power @ 20 °C 41 W*
