Glow igniters

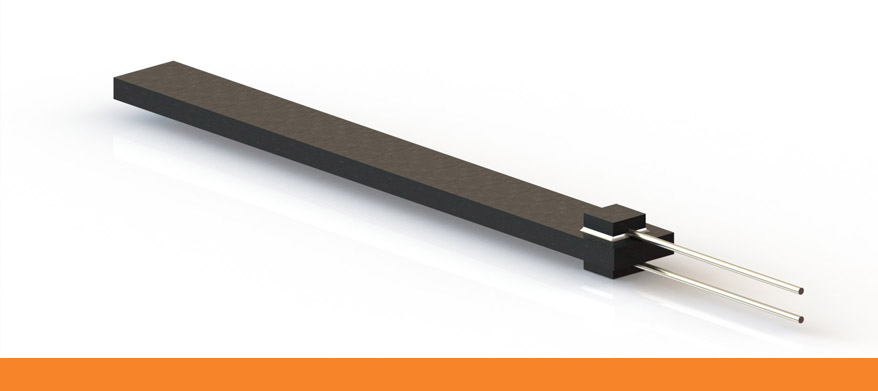

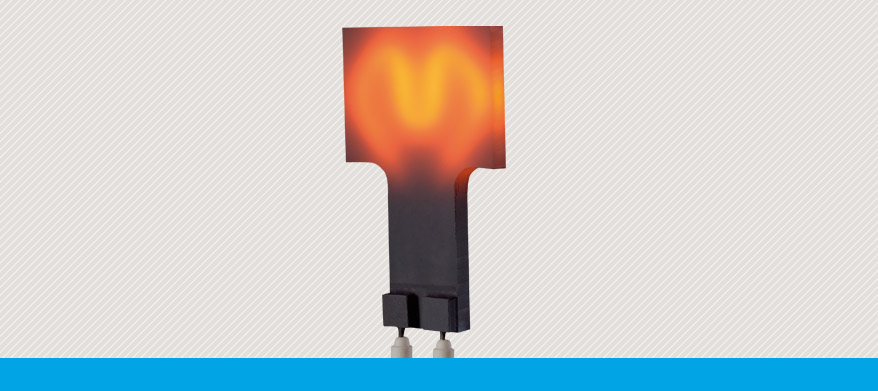

Glow igniters made of silicon nitride are normally rectangular in shape. Within our mold diameter of up to 400 mm various dimensions and batch sizes are possible. These igniters have a hot zone range of operation up to 1 000 °C and a cold zone in the contact area. Our glow igniters have been mass produced for many years. They can be configured for different line voltages and can be operated without a controller. The special properties and low mass of the ceramic material allow fast heating rates, uniform temperature distribution and outstanding precision in control. As long as the operating instructions (Download) are followed, the glow igniters will work efficiently for years without wear.

Customized design

Our in-house designs make any modification in size, configuration, or performance simple and convenient. Holes for temperature sensors can be included. The glow igniters can be equipped with sockets or protective tubes (see accessories). The electrical output power can be adjusted according to the specifications of your furnace assembly (e. g. fan) and of the fuel used.

Range of products

This is only a small selection from our product portfolio. For other variants please contact us with our product request form.

Dimensions Heated area Tmax
60 x 8.0 x 2.5 mm 10 x 8.0 x 2.5 mm 1 000 °C
60 x 8.0 x 2.5 mm 30 x 8.0 x 2.5 mm 1 000 °C
75 x 14.7 x 4.4 mm 50 x 14.7 x 4.4 mm 1 000 °C


Your advantages:

  • Fast ignition thanks to rapid heating rates
  • You can operate the igniter at grid voltage without control
  • The fully ceramic igniter has a superior fracture toughness and is chemically resistant

Areas of application

  • ignition of solid fuels (e. g. wood pellets)
  • ignition of gas or oil
  • heating of process gases
  • generating of hot air
  • incineration of exhaust fumes, reburning
  • pyrotechnics
  • brazing machines
  • vacuum technology
  • mechanical engineering
  • R&D - laboratory equipment, measuring and testing equipment, reactors
  • tool heating
