Heating elements
General description:
Full-ceramic heating elements from silicon nitride are particularly well suited for use in packaging machines, for example for sealing or foil welding processes. Due to the high-power density, the processes can be designed very dynamically, the cycle times are shortened and the productivity improves. The close-to-contour generation of process heat also significantly reduces the heat loss: The energy savings that can be achieved are considerable, especially with 24/7 production machines. Compared to conventional heating technology, the full-ceramic heating elements by Bach RC have already been able to achieve more than 90% energy savings in individual applications. Heating elements with integrated cutting edge make possible the simultaneous welding and cutting of plastic films.

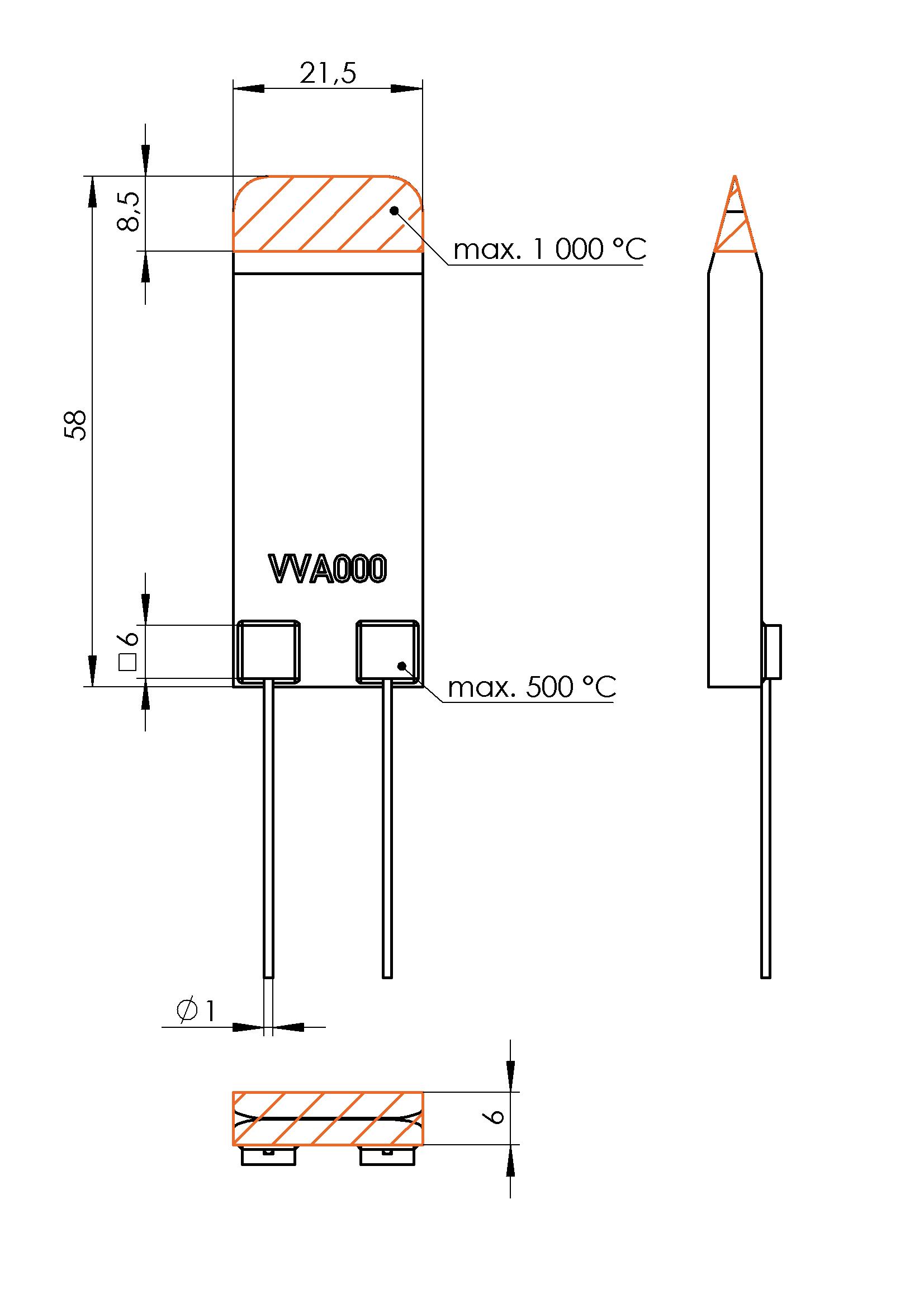

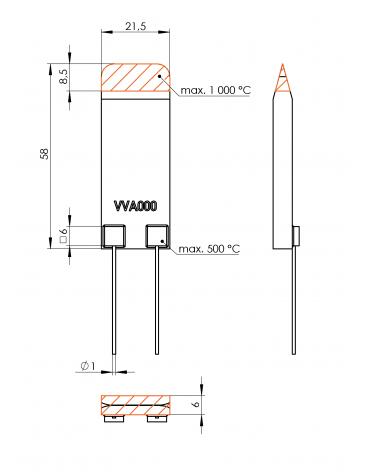

Basic values:
| Parameter | Value |
|---|---|
| Dimensions | 58 x 21.5 x 6.0 mm |
| Heated area | 21.5 x 8.5 x 6.0 mm |
| Tmax | 1 000 °C |
| Remark | Heatet knife |
Details:
- Standard
-
Description
* The actual power depends on resistance, temperature and voltage.
Parameter Value Article no. FLE 100 086 Resistance @ 20 °C 3,8 Ω ±25 % Nominal voltage 24 V Nominal power @ 20 °C 150 W*
